1.2 KV 600A Tri-clamp Secondary Bushing

1.2 KV 600A Tri-clamp Secondary Bushing
Details:
Cooper Power Systems Secondary Bushings are designed for external mounting on distribution transformers filled with transformer oil, R-Temp®, Envirotemp® FR3™ Fluid or an approved equivalent and are available with either spade or stud connections.
Send Inquiry
Description
Send Inquiry

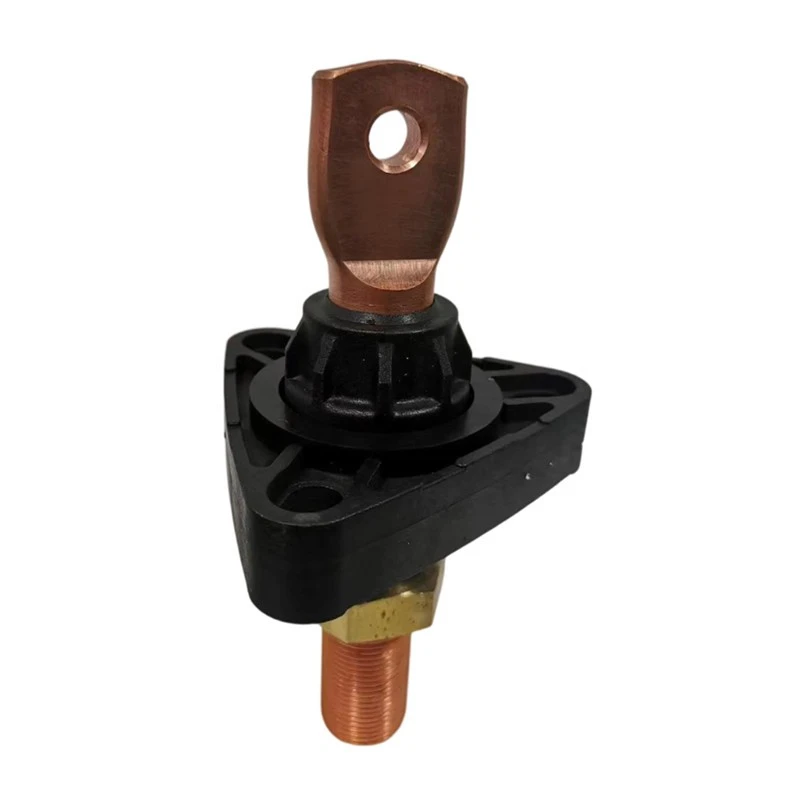

1.2 kV 600A Tri-Clamp Secondary Bushing



Reliable Low Voltage Interface for Transformer Secondary Connections

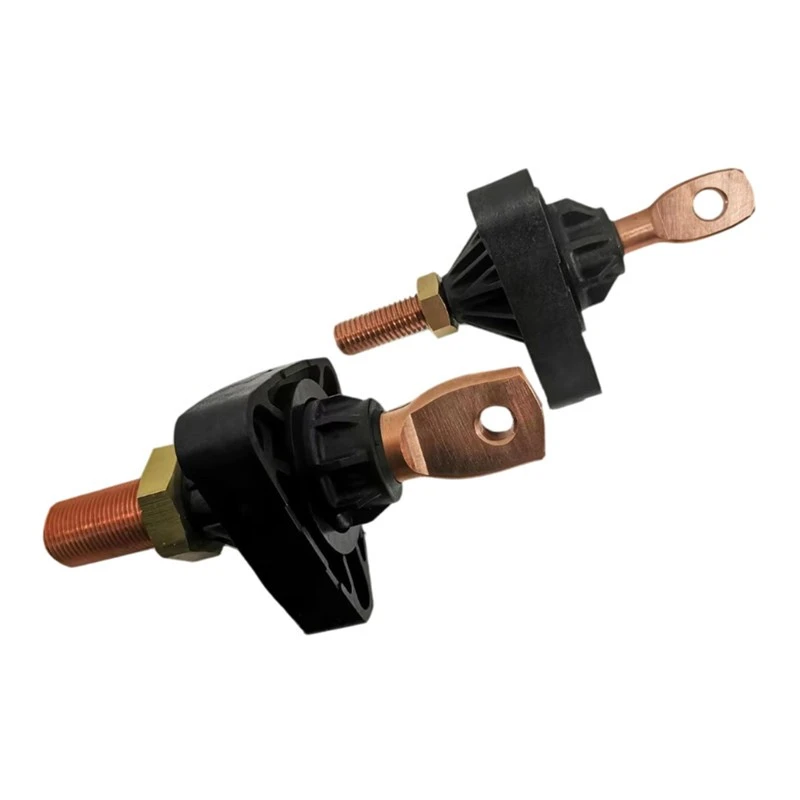

Cooper Power Systems Secondary Bushings are designed for external mounting on distribution transformers filled with transformer oil, R-Temp®, Envirotemp® FR3™ Fluid or an approved equivalent and are available with either spade or stud connections. They are designed for use indoors or inside cubicles of fluid-filled transformers or switchgear. Internal spade/externally threaded stud secondary Tri-Clamp bushings are available with 5/8" and 1" diameter copper studs. An internally threaded stud option is also available. The 5/8" and 1" bushings come standard with 1 3/4" of usable external threads. The 1" bushing is also available with up to 3" externally usable thread lengths. Industry standard mounting configura[1]tion and compatibility with most available connectors allow use in a wide range of applications.

11



product-800-590

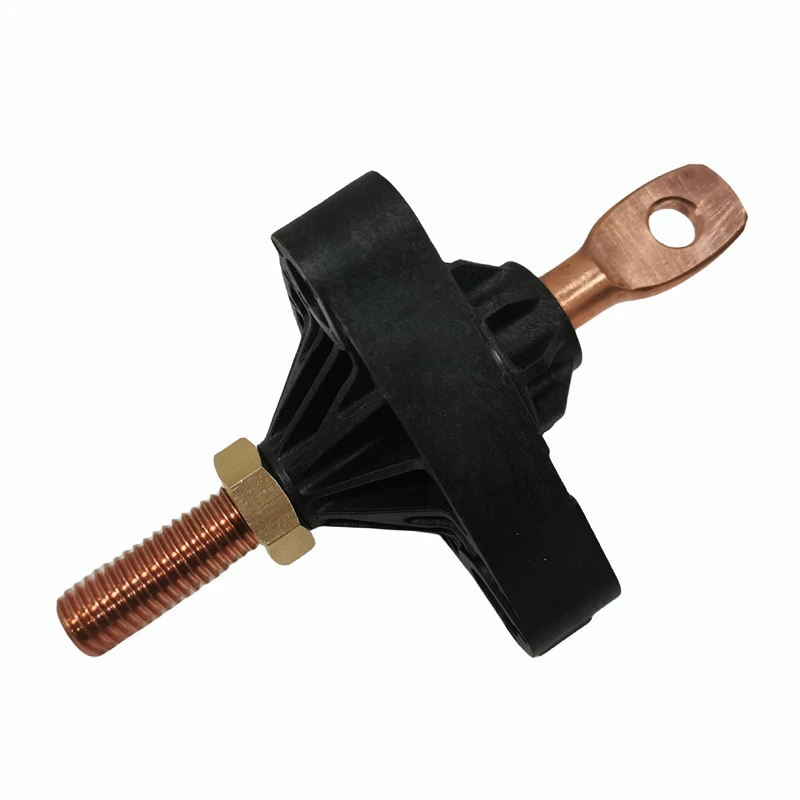

Tri clamp low voltage bushing 12kV 600A



4

Installation

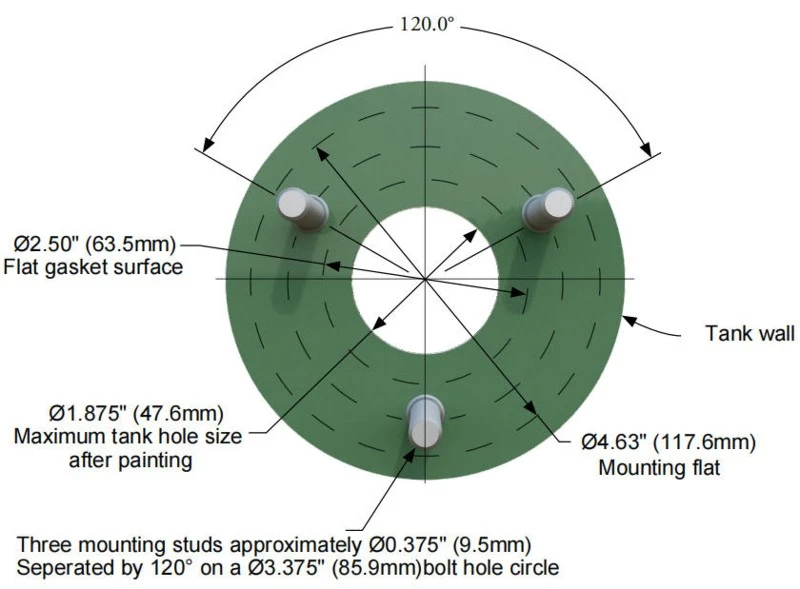

Clamping studs must be welded around the 1 7/8" hole to accommodate the clamp. The gasket is installed over the bushing shank onto the bushing gasket surface. The bushing assembly is installed through the tank hole and is placed over the studs against the shoulder flange of the bushing. A plated lockwasher and nut are installed on each stud and tightened to the recommended torque. Refer to installation instructions.

Note: Mounting nut and washer to match mounting stud. Maximum torque 40 to 60 In-Lbs.



Advantages - Why Choose Our Secondary Bushings



We are committed to delivering safe, durable, and high-performance low-voltage connection solutions for global transformer and power distribution markets.

  • Professional manufacturer of transformer accessories
  • Stable production quality with strict inspection system
  • Competitive factory pricing
  • Strong OEM & ODM capabilities
  • Fast global delivery support
  • Technical engineering support for projects

FAQ





Q: What is a 1.2 kV 600A Tri-Clamp Secondary Bushing used for?

A: It is used to provide a secure and efficient connection point for transformer secondary low-voltage 600A circuits.

Q: Is This Bushing Suitable For Heavy-Load Applications?

A: Yes. It is designed for continuous 600A operation under heavy-load conditions.

Q: Can It Be Used Outdoors?

A: Yes. It is built with durable insulation materials suitable for both indoor and outdoor environments.

Q: What Is The Advantage Of Tri-Clamp Design?

A: The tri-clamp structure provides strong mechanical stability and reliable electrical contact, reducing maintenance needs.
