600A 1.2kV HTN molded tri-clamp secondary bushing

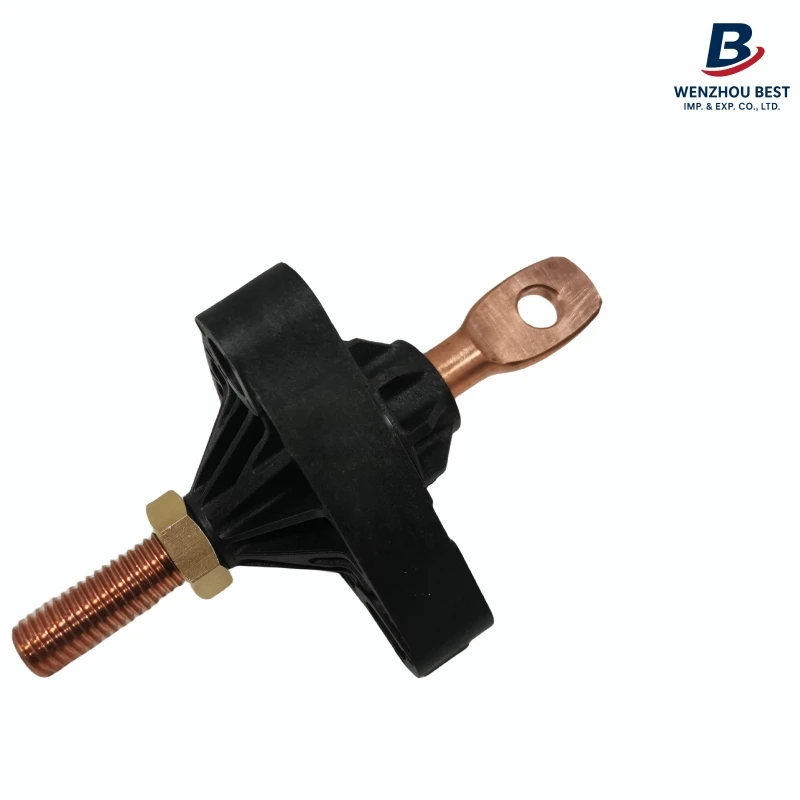

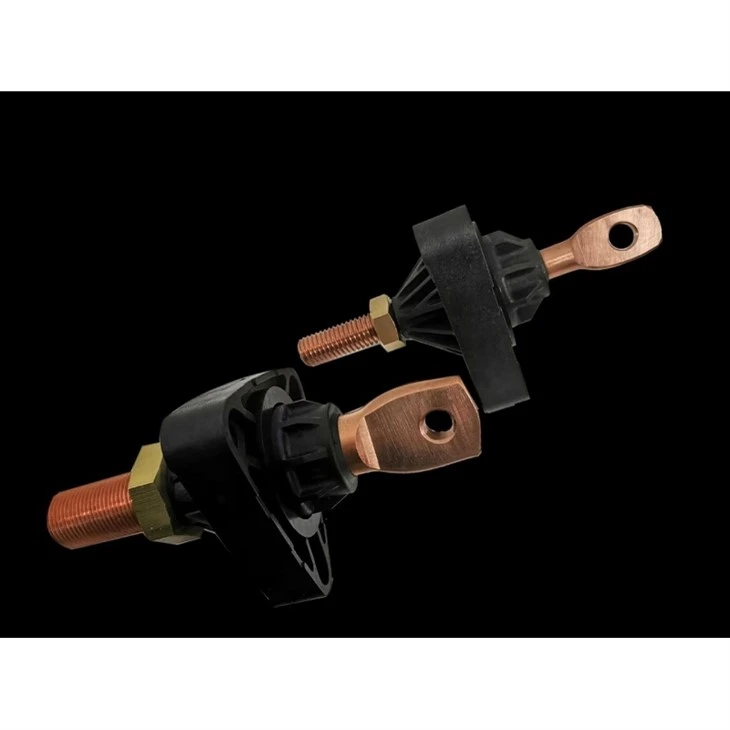

600A 1.2kV HTN molded tri-clamp secondary bushing for pad-mounted transformers. Copper conductor, 5/8"-11 and 1"-14 threaded configuration, designed for reliable low-voltage transformer connections.
Eaton 2690286D01 replacement.
Design features
The molded HTN body provides electrical insulation and environmental protection, while the copper conductor provides the current-carrying path.
The tri-clamp mounting configuration allows the bushing to be securely mounted to the transformer tank with a gasketed interface.
Meet ANSI/IEEE standard:
Withstand Voltage (50/60Hz):10kV/ 1min
BIL and Full Wave Crest:30kV
Continuous Current:600A
How It Works

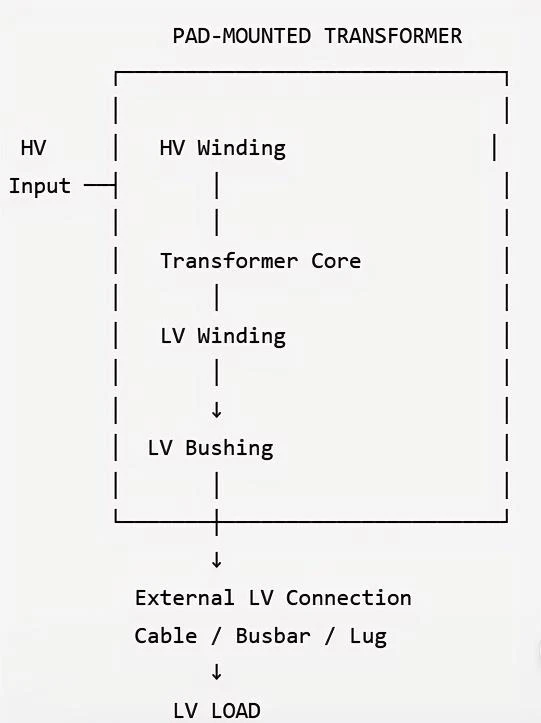

Safely and reliably conduct the current from the transformer's internal low-voltage winding to the exterior of the transformer tank while maintaining proper insulation, and provide a reliable external low-voltage electrical connection.
Advantages
1.CONDUCT
Copper conductor→ Carries high current
2.INSULATE
HTN molded body→ Provides electrical insulation
3.MOUNT
Tri-clamp design→ Secure transformer tank installation
4.SEAL
Gasketed interface→ Helps maintain tank sealing
Product Family
600A–1400A 1.2kV HTN Molded Tri-Clamp Secondary Bushings
|
Configuration |
Current |
Conductor |
|
5/8"-11 threaded configuration |
600A |
Copper |
|
5/8"-11 stud / spade configuration |
600A |
Copper |
|
1"-14 stud / spade configuration |
1400A |
Copper |
|
1"-14 extended stud configuration |
1400A |
Copper |
|
1"-14 double-thread configuration |
1400A |
Copper |
Application:

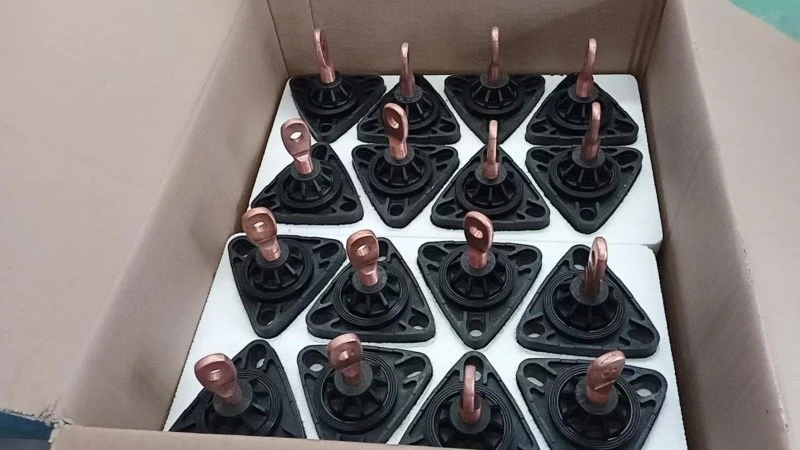

Buil in stock

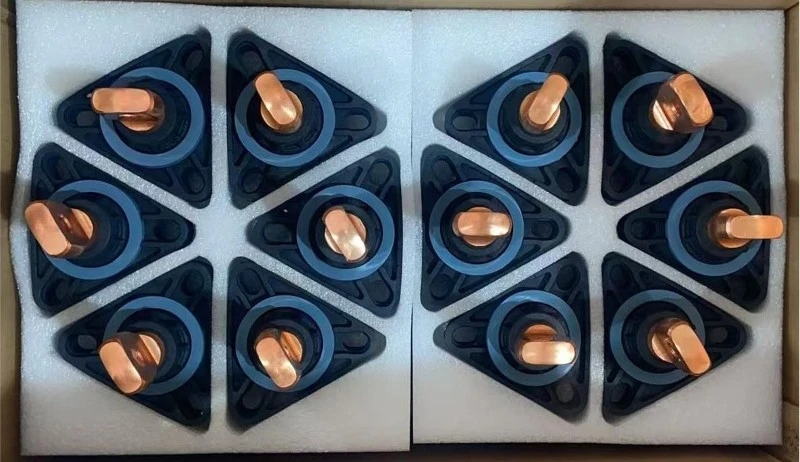

Packing
|
|
 |
Why Choose Wenzhou Best Imp. &Exp. Co., Ltd low voltage bushing?
Wenzhou Best Imp. & Exp. Co., Ltd. is more than a trading company - we are a long-term technical and strategic partner to transformer accessory manufacturers.
2.Direct Replacement Configuration
3.Consistent Dimensional Design
4.Transformer OEM Support
FAQ
Q: What Is The Conductor Material?
A: The 600A configuration uses a copper current-carrying conductor.
Q: Is This Bushing Equivalent To Eaton 2690286D01?
A: Our product is manufactured in a configuration corresponding to Eaton/Cooper Power 2690286D01. Customers should confirm critical dimensions, connection configuration and electrical requirements before replacement.
Hot Tags: 600a 1.2kv htn molded tri-clamp secondary bushing, China 600a 1.2kv htn molded tri-clamp secondary bushing suppliers, manufacturers, factory, Wenzhou Best Imp. & Exp.
